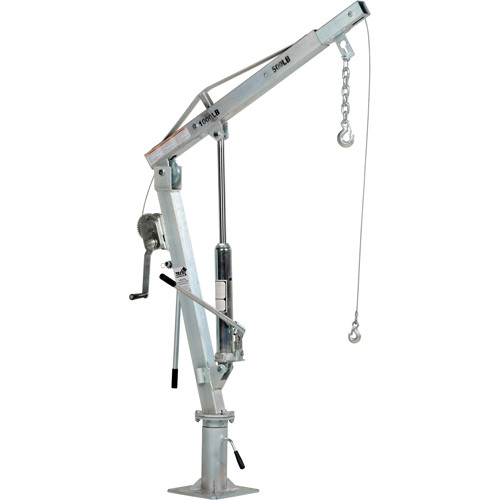

Product Details
Lift items from ground to truck bed height
Install in pick up truck beds
Telescopic boom design with manual hydraulic hand pump to pivot boom up and down
Manual cable winch to lift and lower loads
Friction brake winch locks automatically when operator turns the handle counter clockwise to lower load
Cable usage length: 24'
Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch
Mounting plate is 10-5/8" by 10-5/8"
Base height is 10"
Overall height is 56"
Crane swivels on a 360° base
Welded steel construction
Cable diameter: 3/16"
Overall Cable Length: 32'
Specifications
- Capacity 500 lbs. (0.25 tons)
- Max. Lift Clearance 99"
Additional Specifications
- Boom Extended Capacity 500 lbs.
- Chain Material Steel
- Boom Retracted Capacity 1000 lbs.
- Cable Winch Capacity 500 lbs.
- Boom Extended Reach 52"
- Boom Retracted Reach 30-1/2"
- Extended Lift Range 0 - 99"
- Retracted Lift Range 13-1/2" - 84"
- Finish Galvanized
- Weight 134 lbs.
