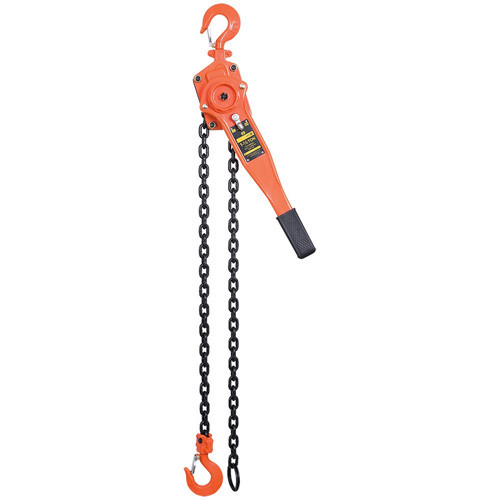

Product Details
Cold formed stamped steel housings resist impact
Hardened steel roller bearings support load for easier operation
Dual pawl Weston-style brake for reliable and safe operation
Exclusive premium grade, non-asbestos brake discs for longest life
Top and bottom safety hooks bend to warn of overloads
Deformation indicators on hooks allow accurate measurement for easy maintenance
Load tested to 150% of rated capacity with certificate
Specifications
- Capacity 3000 lbs. (1.5 tons)
- Lift 10'
Additional Specifications
- Standard(s) Met ISO 9001-2000, ASME B30.21
- Load Chain Diameter 8 mm
- Load Chain Grade 80
- Number of Falls 1
- Min. Distance Between Hooks 15"
- Force Required to Lift 48 lbs.
- Lever Length 16-1/2"
