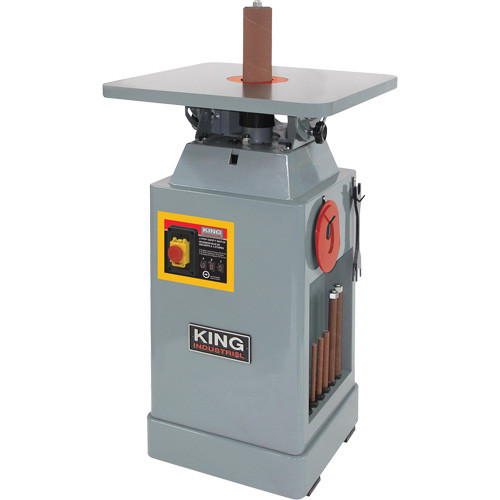

Product Details
Heavy-duty cast iron table is precision ground
Table tilts 45¦ down and 20¦ up
Rubber drum can be fitted on both ends for full use of the entire spindle
Includes: 4" dust chute, set of 10 removable spindles, in sizes 1/4" x 5", 3/8" x 6", 1/2" x 6", 5/8" x 6", 3/4" x 9", 1" x 9", 1 1/2" x 9", 2" x 9", 3"x 9" and 4" x 9" ; ; Model No. TS213 ; Mfg. No. KC-OVS-F2; Oscillations per minute: 72 ; Oscillations stroke: 1 1/2" ; Spindle drum length: 10 (5" - 9") ; Spindle drum diameter: 1/4" - 4" ; Spindle speed: 1720 RPM; Table size: 25" x 25" ; Motor: 11 A @ 110 V, 5.5 A @ 220 V ; Voltage: 110 V/220 V, single phase, 60 Hz ; Pre-wired at: 110 V ; Dimensions: 25" L x 25" W x 35 3/4" H; Weight: 385 lbs.
Specifications
- Overall Width 25"
- Overall Length 25"
- Overall Height 35-3/4"
Additional Specifications
- Motor 11 A @ 110 V, 5.5 A @ 220 V, Single Phase, 60 Hz
- Spindle Speed 1720 RPM
- Table Size 25" X 25"
