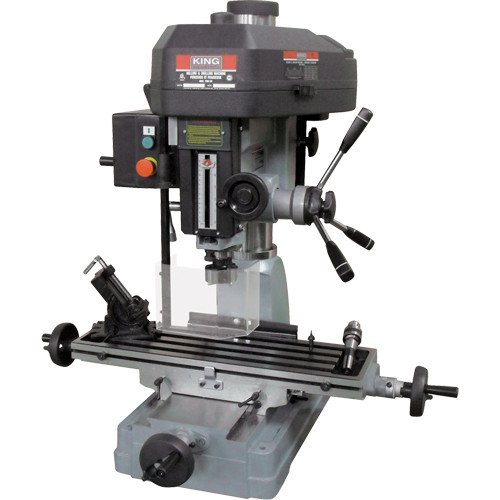

Product Details
Spindle is equipped with four heavy-duty tapered roller bearings
Table control hand wheels have large micrometer dials graduated in 0.001"
Head swivels 360° and is easily raised and lowered
Includes: 3" face cutter, 1/2" chuck with key, 3 1/2" angle vise and safety guard
Specifications
- Drilling Capacity 1-1/4"
- No. of Speeds 12
- Table Size 8-1/4" W x 28-3/4" L
- Overall Width 39"
- Overall Length 43"
- Overall Height 42"
Additional Specifications
- Diameter of Column 4-3/4"
- Number of Speeds 12 (150-2500 RPM)
- Size of T-Slot on Table 5/8"
- Motor 11:00 AM
- Voltage 220 V, 1 phase, 60 Hz
- Approx. Shipping Weight 600 lbs.
