Product Details

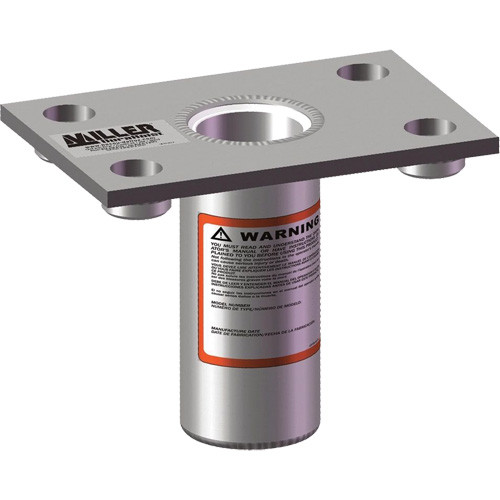

Mounts to horizontal concrete or steel structures
Includes PVC sleeve liner
Rated capacity of 450 lbs./204 kg working load limit @ minimum 4:1 Design Factor
Additional Specifications
- Base Material A-36 Steel Plate
- General Construction Welded Mild Steel
- Weld Certification AWS
- Material Structure Sch.40 Pipe
- Sleeve Bearing Material PVC Pipe
- Thrust Bearing Material High Density Polyethylene
- Mast Moment Proof Load 90,000 in-lbs (10,200 N.m)
- Mast Rotation 360°
- Weight 24 lbs. (10.9kg)
