Product Details
Use with non-flammable liquids compatible with pump component materials
Dry run capability*

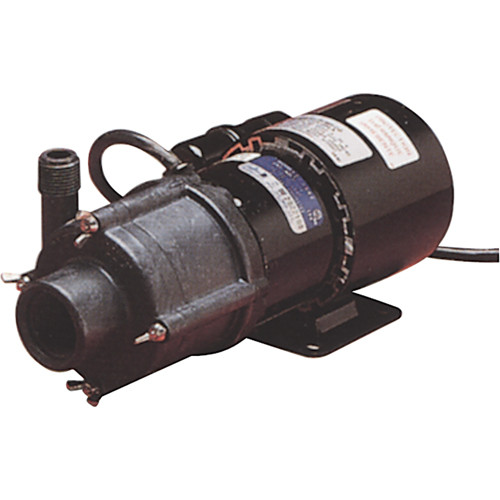

Non-submersible pumps with leak-proof, sealless magnetic drive
99.5% pure alumina ceramic shaft and thrust washers for long, trouble-free service in use with harsh solutions
Self lubricating carbon impeller bushing is impervious to fluids and long-lived in abrasive solutions
Glass-filled Ryton« pumping head and impeller with Ryton« encapsulated driven magnet for superior chemical wear resistance
Viton« O-ring
6' power cord with 3-prong moulded plug
Motors have sleeve bearings on models DA348, DA345, DA353 and DA354, DA351 has ball bearings
Thermally protected
Specific gravity up to 1.1, viscosity up to 100 SSU (20 CPS)
Ambient air temperatures up to 77¦F (25¦C)
Fluid temperatures up to 200¦F (79¦C)
Pump materials in contact with fluids: Ryton«, 99.5% pure alumina ceramic, carbon and Viton«
CSA component certified LR-19315
Specifications
- Motor 1/10 HP
Additional Specifications
- Seal Material Attribute_Info_1
- Pump Material Alumina Ceramic Shaft
- Flow Rate 850 GPH @ 1'
