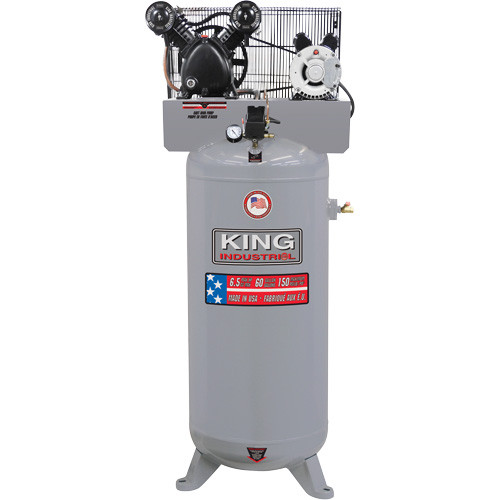

Product Details
2-cylinder cast iron single stage oil lubricated pump
ASME registered tank and safety valve
Large intake filters
Pump with V-style design minimizes vibration, improves cooling and extends compressor life
Portable units are equipped with 9 1/2" pneumatics wheels and front handle
Gas units are equipped with a 4-stroke air cooled OHV Honda gas engine
Machine starts up at 6.5 HP (Peak HP), machine runs at 3 HP
Specifications
- Horse Power 6.5 HP
- CFM 11.2 at 90 PSI
- Electric/Gas Electric
- Voltage/Phase 240/1
- Tank Capacity 50 Gal. (60 US Gal)
- Max. PSI 135
Additional Specifications
- Air Delivery CFM- 40 PSI 13.4
- Motor Amerperage 15 Amps
- Pump RPM 3450
- Wt. lbs. 260
- Remarks Vertical
- Factory Pressure Setting 95 – 125 PSI
- Hertz 60
