Product Details
HVAC Clamp Meter Cat. No. CL320 with TRMS measurement technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)
Measure air vents and duct temperature using temperature probe with hands-free hanging hook
Calculate differential temperature (T1-T2) for both IR and probe temperatures
Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
Detects voltage with simultaneous visual and audible voltage indicators
Bright flashlight illuminates work area and may be used independent of voltage detection function
CAT IV 1000V rating provides expanded operation and protection

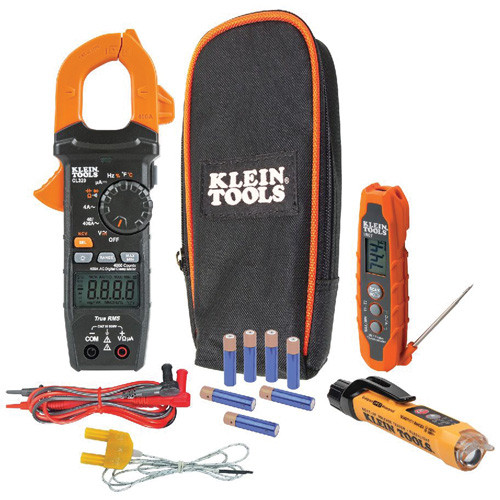

Includes: (1) Cat. No. CL320 Auto-Ranging TRMS 400A HVAC clamp meter, (1) Cat. No. IR07 Dual IR and probe thermometer, (1) Cat. No. NCVT3P Dual range non-contact voltage tester with flashlight, (1) Set of test leads with CAT III/CAT IV safety caps, (1) Thermocouple, (7) AAA batteries, (1) Storage Pouch
Additional Specifications
- Functions TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC Microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
- Current 400 A AC
- Capacitance 4000 µF
- DC Micro-Amp 200 μA
- Ohms (Resistance) 40 Megaohms
- Voltage 600V AC/DC (CL320); 1000V AC (NCVT3P)
- Standard(s) Met CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified (CL320); CAT IV 1000 (NCVT3P)
- Weight 1.575 lbs.
- Jaw Size 1.6"
