Product Details

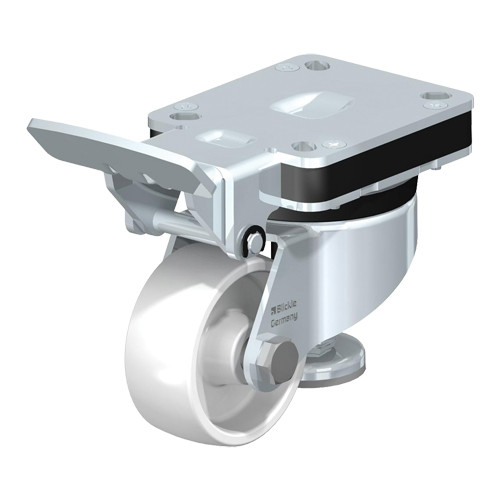

Swivel rig with double ball bearing in the swivel head
Minimal swivel head play and smooth rolling characteristics
Medium heavy duty rigs, with top plate fitting
Low rolling and swivel resistance for smooth running performance
High chemical resistance to many aggressive substances
Operating temperature: -15° F to +175° F
Specifications
- Wheel Diameter 3-1/4" (82.5 mm)
- Capacity 505 lbs. (230 kg.)
- Wheel Material Steel
- Caster Type Swivel
- Frame Material Steel
- Tread Width 1-7/16" (37 mm)
- Bolt Hole Spacing 3-1/4" x 2-3/8" (83 mm x 60 mm)
- Bolt Hole Size 11/32" (9 mm)
- Plate Size 4" x 3-3/8" (102 mm x 86 mm)
Additional Specifications
- Tread & Tire Hardness 70° Shore D
- Bearing Type Plain Bore
- Total Height 4-3/4"
