Product Details

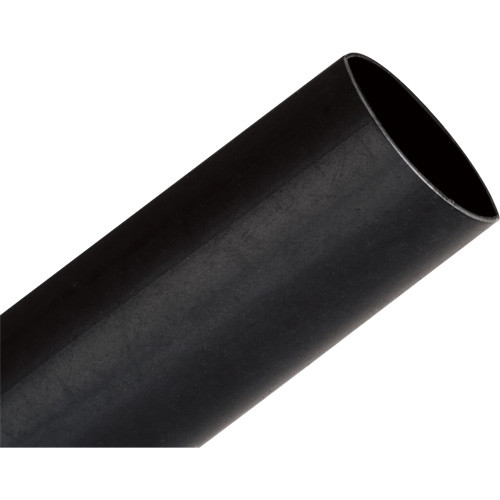

Heat-shrinkable, flexible polyolefin tubing offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications
Rated for 135°C (275° F) continuous operation
Designed to withstand elevated temperatures to 300°C (572°F) for short periods of time
Flexible and split resistant
Rated for 600V applications
Meets the requirements of SAE-AMS-DTL-23053/5, Class 1, Class 2 (clear) AMS-3636, AMS-3637
It is Underwriters Laboratories (UL) Recognized, File E-39100, at 600 volts maximum at 125°C and is CSA Certified, CSA LR38227, at 600 volts maximum at 125°C
Used for lightweight wire harness covering, wire marking, wire bundling, component packaging and fire-resistant covering
Specifications
- Shrink Ratio 2:01
- Expanded Inside Diameter 1" (25.40mm)
- Recovered Inside Diameter 0.5" (12.7mm)
- Length 50'
- Tubing Type Thin Wall
Additional Specifications
- Colour Black
- Material Flexible Polyolefin
- Tensile Strength 2400 Pound-Force Per Square Inch
