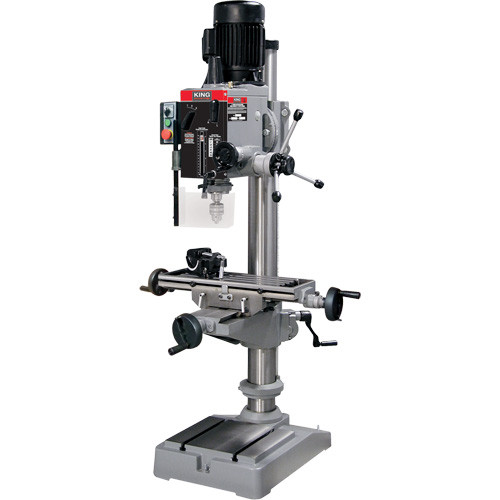

Product Details
Magnetic line interruption switch needs a restart after a power failure
Spindle is equipped with four heavy-duty tapered roller bearings
Powerful 1.5 HP motor
Forward and reverse switch
Includes: 1/2" chuck with key, 3-1/2" angle vise, Safety guard
Specifications
- Drilling Capacity 1-1/4"
- No. of Speeds 6
- Table Size 7-1/2" W x 23" L x 78" H
- Overall Width 37"
- Overall Length 38"
- Overall Height 78"
Additional Specifications
- Max. Distance Spindle Nose to Table 26-1/2"
- Max. Distance Spindle Nose to Base 47"
- Swing 20-7/16"
- Spindle Taper R8
- Spindle Stroke 5"
- Diameter of Column 4-1/2"
- Face Mill Capacity 4"
- End Mill Capacity 3/4"
- Motor 2 Amps
