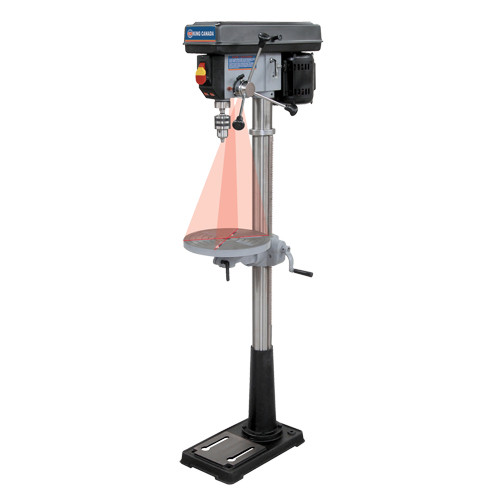

Product Details
Spindle is supported by high quality ball bearings
Cast-iron pulleys reduce vibrations
Comes with non-slip rubber feed handles
45° tilting table for angular drilling
Locking depth stop for accurate repetitive blind hole drilling
Includes: 5/8" drill chuck, and key
Light socket incorporated into drill press head (standard light bulb not included)
Specifications
- Swing 13"
- Chuck Size 5/8"
- No Load Speed 3600 RPM
- Overall Width 24"
- Overall Length 11-3/4"
- Overall Height 62-1/2"
Additional Specifications
- Max. Distance Chuck to Table 23-1/2"
- Max. Distance Chuck to Base 45"
- No. of Speeds 16
- Speed Range 220-3600 RPM
- Spindle Taper #2 Morse
- Motor 7.5 A, 1 phase, 60 Hz
- Voltage 110 V
- Weight 120 lbs.
