Product Details

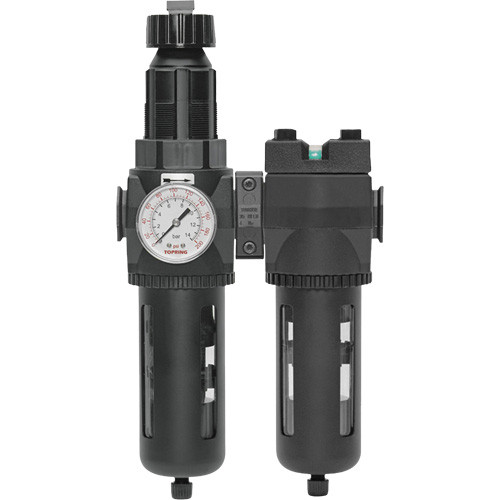

High performance combination with 2 units
High-flow design
Designed to remove particulate material down to 5 micron from the airstream to protect downstream equipment
Filter with superior removal of free water up to 98% efficiency
Coalesing-filter designed to remove particulate material 99.98% of free oils and solid contaminants 0.01 micron and larger
Coalesing-filter with differential pressure gauge to indicate when coalescing filter element needs changing
Superior pressure regulation — diaphragm type regulator
Self relieving design
Push-pull adjusting knob
Specifications
- Connection Size 3/4" NPTF
- Max. PSI 150 PSI
- Bowl Material Polycarbonate
- Bowl Capacity 9.13 fl. oz.
Additional Specifications
- Ambient/Media Temperature (Standard Bowl) 4 to 52 °C
- Inlet Pressure (Standard Bowl with Manual Drain) 0-150 PSI
- Outlet Pressure Adjustable up to 100 PSI
- Filtration (F) 5 micron, (Fc) 0.01 micron
- Standard Bowl Polycarbonate with Steel Shatterguard
