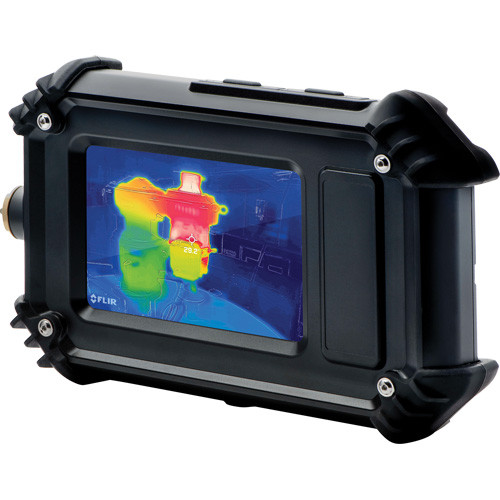

Product Details
Certified for use in many explosive environments, eliminating the need to acquire hot work permits due to gas, vapor, and dust, while making T-Class surveys quick and easy
With FLIR MSX® (Multi-Spectral Dynamic Imaging) and 1-Touch Level/Span, the Cx5 can help you identify potential problems quickly to improve plant performance
The 3.5-inch touchscreen interface is simple to use, and 160 × 120 thermal resolution gives you accurate temperature measurement of nearby targets
Built-in FLIR Ignite™ cloud service provides direct data transfer, storage, and backup, so images are always available and securely stored on all your devices
With the FLIR Cx5 in your toolbox, you’ll always be ready to investigate mechanical and electrical equipment around your production site
Investigate potential problems from a safe distance using FLIR MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span
Wirelessly upload and share data, images, and files to the FLIR Ignite™ cloud, and synchronize the camera with FLIR Thermal Studio software for the most powerful thermography analysis and report generation
Specifications
- Display Size 3.5"
- Display Type Built-in
- Resolution 160 x 120 pixels
- Thermal Sensitivity 70 mK
- Temperature Range -10° - 50°C (14° - 122°F)
Additional Specifications
- Image Modes Infrared Image, Visual Image, MSX (Embossed Visual Details on Thermal Image), Picture-in-Picture (IR Area on Visual Image)
- Colour Palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Image Frequency 8.7 Hz
- Spectral Range 8 to 14 µm
- Camera Dimensions (L x W x H) 168 mm× 112 mm × 42 mm (6.6 × 4.4 × 1.7")
- Battery Operating Time 4 Hours
- Battery Type Rechargeable Built-In Lithium Ion Battery
- Charging Time 2 Hours
- Standard(s) Met EN EIC 60079-0: 2018, IEC 60079-15: 2017, EN EIC 60079-31: 2014, IEC 60079-0: 2017, EN EIC 60079-15: 2019, IEC 60079-31: 2013
