Product Details

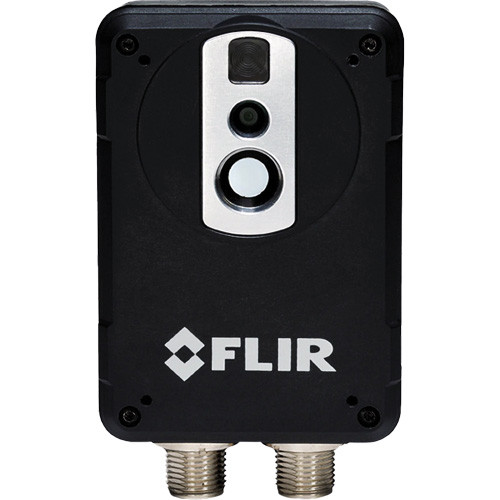

Combines thermal imaging with a visual cameras in one small, affordable package for continuous temperature monitoring and alarming
The AX8 helps you guard against unplanned outages, service interruptions, and failure of electrical or mechanical equipment
Compact and easy to install, the AX8 provides continuous monitoring of electrical cabinets, process and manufacturing areas, data centers, energy generation and distribution, transportation and mass transit, storage facilities and refrigeration warehouses
With AX8, you can view its thermal imagery, visible light imagery, or the two combined into FLIR's proprietary, patent pending MSX multi-spectral dynamic imaging
Specifications
- Display Size None
- Display Type Built-in
- Resolution 640 x 480 pixels
- Thermal Sensitivity 100 mK
- Temperature Range -10° - 150°C (14° - 302°F)
Additional Specifications
- Spectral Range 7.5 - 13 μm
- Field of view (FOV) 48° × 37°
- Emissivity Correction Variable from 0.01 to 1
- Colour Palettes BW, BW Inv, Iron, Rain
- File format Type JPEG, JPEG+FFF, PNG+JPEG, FFF, FFF+PNG
- Ethernet Type 100 Mbps
- Image modes Thermal, Visual, MSX (IR-Image with Enhanced Detail Presentation)
- External Power Type 12/24VDC, 2 W Continuously/3.1 W Absolute Max.
- Operating Temp. Range 0°C to 50°C (32°F to 122°F)
