Product Details

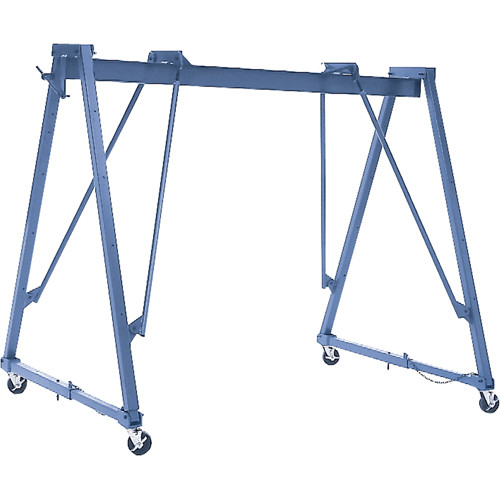

Adjustable gantry cranes move and lift heavy equipment with ease
Height adjustable between 8' and 14'
Equipped with four heavy-duty steel swivel casters with wheel brakes
H-Beams use flat-wheel trolleys; I-Beams use taper-wheel trolleys.
Can be fitted with or without casters
Shipped knocked down
F.O.B. Vaudreuil, Quebec
Specifications
- Capacity 2000 lbs. (1 tons)
- Overall Beam Length 15'
- Max. Height Clearance 13.625'
- Min Height Clearance 8.75'
Additional Specifications
- O.A. Span A' 15
- Clear Span B 9'7"
- Hook Lift Min/Max C 6'6"/11'10"
- O.A. Height Min/Max D 8'9"14'7"
- Beam Height E 8"
- Wheel Spread Min/Max F 4'7"/7'
- Unit Beam Width 5.25"
- Weight 1050 lbs.
- Note Crane only, hoist and trolley not included
