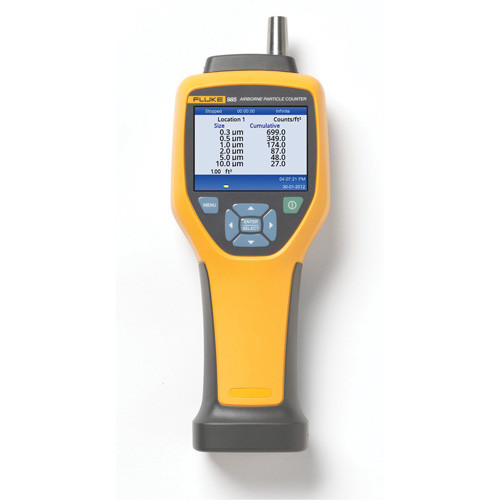

Product Details
Assures accurate measurements even for critical locations requiring ISO Class 5 - 9 certification
Promises easy single-hand operation in tight or awkward spaces with less operator fatigue
Easy navigation and viewing with the intuitive icons and large font options on the large 3.5 QVGC colour display
Quick access to historical data and 10,000 record storage
Data can be viewed in a traditional tabular or trend graph view at the user's preference
Customizable settings for the display, sample methods, and alarm settings for sample count
Download data to a PC using a USB memory stick, USB cable or Ethernet connection
No special software is required to download or view data
Include: Getting started manual and user's manual CD, Cradle for charging and USB and Ethernet Communications, ENET CAT5E 7' cable, USA-A to MINI-B 6' cable, 12 V DC power supply, Zero count inlet-filter, Filter adapter, Sample inlet protective cap, Hard case
Specifications
- Display Type Digital
- Data Logging / Not Data Logging Data Logging
Additional Specifications
- Channels 0.3 μm, 0.5 μm, 1.0 μm, 2.0 μm, 5.0 μm, 10.0 μm
- Flow Rate 0.1 cfm (2.83 L/min)
- Light Source 775 nm - 795 nm, 90 mW Class 3B Laser
- Count Modes Raw Counts, #/m³, #/ft³, #/litre in Cumulative or Differential Mode
- Counting Efficiency 50% @ 0.3 μm; 100% for particles > 0.45 μm (per ISO 21501)
- Zero Count 1 count/5 minute (JIS B9921)
- Concentration Limits 10% at 4,000,000 particles per ft³ (per ISO 21501)
- Dimensions 27.2 x 9.9 x 5.3 cm (10.7 x 3.9 x 2.1")
- Weight 0.68 kg (1.5 lbs.)
