Product Details

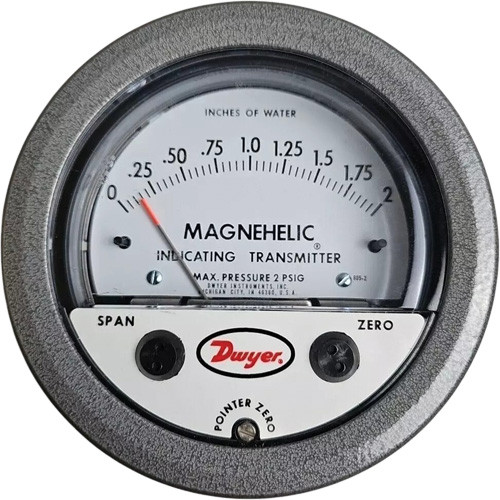

Provides for both visual monitoring and electronic control of very low differential pressure
Ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when troubleshooting the system
Easy-to-read dial gauge is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gauge mechanical design and Series 600 transmitter technology
The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply
Services air and non-combustible, compatible gases
Specifications
- Dial Diameter 4"
- Pressure Range 0 - 2 in. w.c.
- Connection Panel Mount
- Dial Type Analogue
Additional Specifications
- Maximum Pressure 2 psi
- Gauge Accuracy +/-2%
- Gauge Stability ±1% F.S./yr.
- Transmitter Accuracy +/-0.5%
- Connection Thread 1/8" NPT Female
- Gauge Certification(s) CE
- Temperature Limits 20 to 120°F (-6.67 to 48.9°C)
- Transmitter Compensated Temperature Range 32 to 120°F (0 to 48.9°C)
