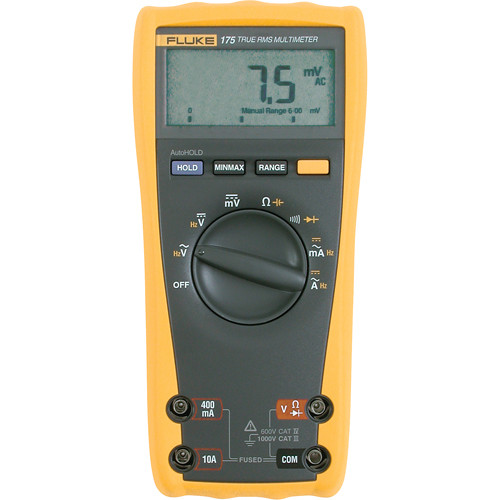

Product Details
True RMS AC voltage and current readings
6000 count display resolution
Min/Max/Avg
Frequency and capacitance capabilities
IEC 1010 Cat. IV 600 V safety rating
Easy access battery door
Specifications
- Voltage Readings AC
- Current Readings AC
Additional Specifications
- ACA Range 0.01 mA-10.00 A
- ADC Range 0.01 mA-10.00 A
- VAC Range 0.1 mV-1000 V
- VDC Range 0.1 mV-1000 V
- Ohms Range 0.1 Ω-50.00MΩ
- Capacitance Range 1 nF-9999 µF
- Frequency Range V (2 Hz-100 kHz), A (2 Hz-30 kHz)
- Continuity Beeper on < 20 Ω, off > 250 Ω; detects open or shorts 250 ms or longer
